The ProLink is Factor 55's original shackle mount. Trusted and used by first responders worldwide, ProLink is easy to install and allows winch owners the ability to replace the vehicle's winch hook with a stronger shackle/D-Ring mount.
The three individual shackle mounting holes allow the winch operator to mount fixed length bridle links to the outside positioned holes for common bridle towing, as well as a single centered shackle mounting point for a conventional single shackle recovery point. Dedicated shackle mounting points prevent dangerous shackle side loading conditions due to the pivoting feature of the shackle pin mounting hole.
Engineered and machined in the USA from lightweight billet 6061 aluminum, ProLink doesn't require splicing and is compatible with steel or synthetic ropes and both hawse and roller fairleads. The cable eye is retained in the ProLink by an ultra-strong aerospace-grade titanium double-shear pin and internal snap ring, and is easily installed in minutes. The EPDM rubber guards protects alloy fairleads and is securely attached to the ProLink with four barbed tips and prevents rattling.
This product is compatible with Closed System Winching, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.

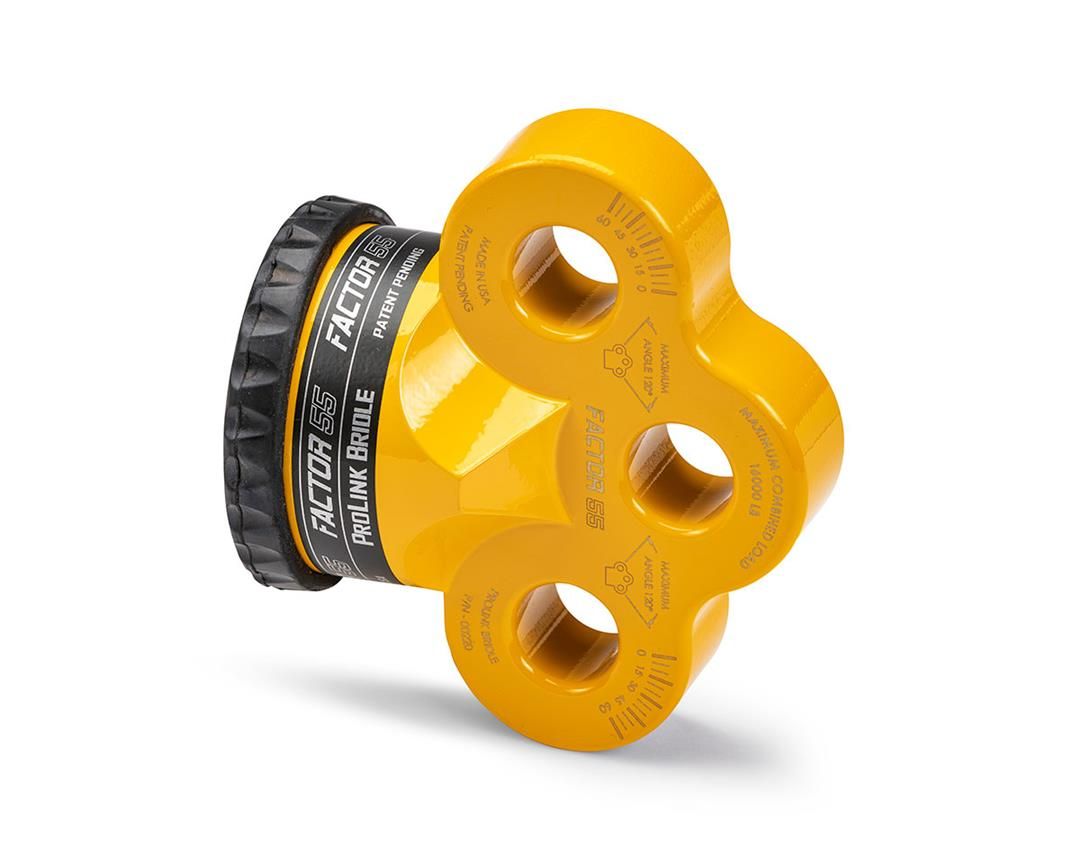

ProLink Bridle Winch Shackle Mount Yellow
Three individual shackle mounting holes allow the winch operator to mount fixed-length bridle links to the outside positioned holes for common bridle towing and single centered shackle mounting point for a conventional single shackle recovery point
Commercial product designed primarily for the towing industry
Fits all steel cables and synthetic ropes up to 3/8 inch diameter
Prevents dangerous shackle side loading conditions
5/8 diameter Titanium double-shear pin and internal snap ring for an ultra-secure connection
EPDM rubber guards are attached with four barbed tips and protects fairleads, cushions line stowage, and prevents rattling
Precision machined from 6000 series aluminum
Engineered, Tested, and Made in USA. Patent pending
Working Load Limit: 16,000 lbs., Ultimate failure of greater than 42,000 pounds
